The Ultimate Guide To Field Stripping And Troubleshooting Your H&R Self-Loading .25 ACP
Introduction: Unlocking the Secrets of a Vintage Pocket Pistol
Have you ever held a piece of history so compact and cleverly engineered that it feels like a mechanical puzzle? The Harrington & Richardson (H&R) Self-Loading .25 ACP pistol is exactly that—a fascinating relic of early 20th-century pocket defense. But what happens when your vintage H&R .25 ACP starts acting up, specifically with the classic symptom where "the round doesn't fully load into the chamber when loading the first shot and subsequent rounds after shooting"? This comprehensive guide dives deep into the world of this unique hammerless pistol, from a meticulous field strip guide to diagnosing stubborn feeding issues and even preserving its historical packaging. Whether you're a seasoned collector, a curious shooter, or a new owner of one of these diminutive firearms, this article is your definitive resource.
We'll move beyond the frustrating lack of online resources—where often no description has been added to this video of disassembly—and provide the detailed, step-by-step knowledge you need. We'll explore its unusually large and heavy striker, its ingenious barrel retention system, and the real-world steps taken to keep both the pistol and its original box from deteriorating. By the end, you'll understand why the H&R self-loading 25 remains a captivating subject and how to approach its care with confidence and respect.
Part 1: The Collector's Dilemma – Diagnosing the Feeding Failure
The journey with any vintage firearm often begins with a problem. For our collector, the primary issue was clear and frustrating: "It is the round that doesn't fully load into the chamber when loading the first shot and subsequent rounds after shooting." This is a classic and common malfunction in old, lightly-used pocket autos, and the H&R .25 ACP is no exception. Let's break down the potential culprits and solutions.
Understanding the Symptom: Failure to Fully Chamber
When a cartridge doesn't seat completely against the bolt face, it's typically a "failure to go fully into battery." This can stem from several sources:
- Weak Magazine Spring: Over decades, springs lose tension. An old, fatigued spring won't push the next round up with enough force to overcome the slide's momentum and chamber it properly.
- Magazine Feed Lip Issues: The tiny lips at the top of the magazine that guide the round can become bent, worn, or corroded, causing the cartridge to tilt or bind as it leaves the magazine.
- Excessive Fouling or Debris: A century of accumulated powder residue, lint, and tiny debris in the magazine well or chamber can create enough drag to stop a round short.
- Weak Recoil Spring: The spring that returns the slide forward may be weak or broken, failing to generate sufficient forward velocity to strip a round from the magazine and drive it home.
- Ammunition Incompatibility: While the .25 ACP (6.35mm Browning) is a specific cartridge, vintage pistols like the H&R can be finicky. Modern, heavier, or longer-nosed bullets may not feed smoothly in an older design's chamber and feed ramp.
Actionable Troubleshooting Steps
Before you even field strip the pistol, try these diagnostics:
- Magazine Swap: The single most effective test. If you have another known-good H&R .25 ACP magazine (or even a magazine from a similar-era pistol like a Baby Browning, with caution), try it. If the problem vanishes, your magazine is the culprit.
- Visual Inspection: With the magazine removed, look down the magazine well with a bright light. Use a dental mirror to check for obstructions. Look into the chamber—is it shiny and smooth, or coated in old, caked-on grease and grime?
- Manual Cycling: With an empty magazine, rack the slide by hand. Does it move smoothly? Listen for grinding. Feel for a distinct "clunk" as the slide goes fully into battery. A gritty or incomplete feel indicates internal friction.
- Ammunition Test: Try a different brand or type of .25 ACP ammunition. Some vintage pistols prefer round-nose bullets over flat-nose, or vice-versa.
As our collector noted, "It's in great condition so I hope it's an easy fix." This optimism is well-placed. Often, a thorough cleaning, a new magazine spring (if you can source one), or a minor bend to a magazine feed lip with needle-nose pliers can resolve the issue. "Took some work for sure" is a common refrain when bringing an old gun back to reliable life, but the reward is a functioning piece of history.
Part 2: The Ingenious Mechanics of the H&R Self-Loading .25

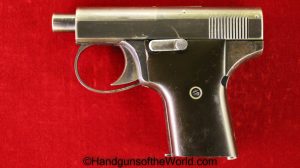

To truly understand how to fix it, you must understand how it works. The H&R .25 ACP is a study in clever, compact design. As stated, "It is a true hammerless pistol with an unusually large and heavy striker." This is its defining mechanical feature.
The Hammerless, Striker-Fired System
Unlike many contemporary pocket pistols (like the Colt 1903 or FN 1906) that use a light, internal hammer, the H&R uses a striker—a firing pin with a strong spring behind it—that is cocked by the slide's rearward travel. The "unusually large and heavy" nature of this striker serves two purposes:
- Reliability: Its mass provides enough inertia to ensure a solid primer strike, even with a relatively light mainspring. This was crucial for a small, personal defense arm.
- Safety: With no external hammer, there's no risk of snagging on clothing. The only manual safety is typically a grip safety on the backstrap, which must be depressed to fire.
Field stripping this system is straightforward but requires understanding its sequence. "Disassembly and assembly in full length of Harrington & Richardson pistol.32" (a similar process for the .25 model) involves specific steps to safely decock and separate the slide from the frame.
The Barrel and Slide Retention System: A Unique Solution
Perhaps the most brilliant and unusual feature is described: "The barrel and slide are held in place by a lug on the front of the trigger guard, which fits into a cut in the bottom of the barrel." This is a takedown lever system unlike almost any other pistol.
- How it Works: A small, flat lever (the lug) is part of the trigger guard assembly. When you press it inward (usually with a fingernail or tool), it disengages from a slot machined into the barrel's underside. This allows the barrel to drop slightly, freeing the slide to be pushed forward and off the frame.
- Why It's Clever: It eliminates a separate, small takedown lever that could be easily lost. It's a robust, integrated system perfectly suited to a small, simple pistol. However, it also means the trigger guard is a critical, stressed part. "Yes, the gun is super old" means this lug and its mating slot must be inspected for wear or cracks during any disassembly.
Part 3: The Complete H&R .25 ACP Field Strip & Assembly Guide
Following our logical progression from problem to principle, here is a detailed, safe field strip procedure. Always ensure the pistol is unloaded. Remove the magazine and check the chamber.
Step 1: Prepare the Pistol. Point the muzzle in a safe direction. Pull the trigger to ensure it's not on a loaded chamber (the grip safety must be depressed). Pull the slide fully rearward and lock it open with the slide stop (if equipped) or hold it.
Step 2: Disengage the Barrel Lug. Locate the small, flat lever on the front of the trigger guard. Using your thumb or a non-metallic tool, push this lever inward (toward the pistol's centerline). You should feel a slight click as it disengages from the barrel.
Step 3: Release the Slide. While still holding the slide back, gently lower the slide stop (or slowly release the slide control). The slide should now move freely forward. Push it fully forward off the frame. It will come off in your hand.
Step 4: Remove the Barrel and Recoil Spring. With the slide off, the barrel is now free. Lift the barrel up and forward out of its position in the slide. The recoil spring and its guide will be underneath the barrel; remove them carefully. The striker assembly is inside the slide; it typically does not need to come out for a basic field strip.
Step 5: Clean and Inspect. This is where you address the feeding issue. Clean the chamber, barrel, slide rails, and frame's magazine well with solvent and a nylon brush. Pay special attention to the feed ramp on the barrel and the corresponding area in the slide. Inspect the magazine spring for fatigue and the feed lips for alignment. Check the barrel lug slot and trigger guard lug for wear.
Reassembly is the reverse, but with one critical note: ensure the barrel lug is fully engaged in the trigger guard slot before attempting to slide the assembly back onto the frame. You will feel a solid "snap" when it locks. Then, pull the slide fully rearward and release it to chamber a round and lock the slide.
Part 4: Beyond the Firearm – Preserving History, Including the Box
Our collector's story doesn't end with the pistol's mechanics. It extends to the entire artifact, including its original packaging. "Condition of box is not the greatest, but I have a friend who does textile and paper conservation for the SC State Museum." This is a vital, often overlooked aspect of collecting.
Why the Original Box Matters
The original box, instructions, and any hangtags are part of the firearm's provenance and significantly increase its value to a historian or serious collector. Cardboard from the early 1900s is highly acidic and brittle. Without intervention, it will continue to crumble and disintegrate.
Professional Conservation: The Right Approach
"Hopefully, he will be able to stabilize it to prevent further deterioration, he is good." This is the correct mindset. A professional conservator, especially one affiliated with an institution like a state museum, uses archival-grade, reversible methods. This is not a DIY project with tape or glue. Techniques may include:
- Humidification: To gently relax brittle fibers.
- De-acidification: Spraying or bathing the paper in a solution to neutralize acids.
- Repair with Japanese Tissue: Using thin, long-fibered paper and wheat-starch paste to mend tears.
- Custom Housing: Creating a protective, acid-free box and support to prevent future stress.
"It will be the next SCACA show, January, before I will be able to see what he may be able to do with the box." Patience is key. True conservation takes time. The goal is stabilization, not restoration to "new" condition. The patina of age is part of the story.
Part 5: The H&R .25 ACP in Context – A Collector's Perspective
To understand the value of this specific pistol, we must place it in the broader landscape of H&R firearms and pocket pistols of its era.
Harrington & Richardson: A Legacy of Innovation
H&R, based in Worcester, Massachusetts, was a major American arms manufacturer from the 1870s to the 1980s. They were known for robust, no-frills, affordable firearms. The H&R Self-Loading .25 ACP was their entry into the popular "vest pocket" pistol market, competing with the likes of Colt and FN. Production ran from approximately 1914 to the early 1940s.
The .25 ACP (6.35mm) Cartridge Context
The .25 ACP, designed by John Browning in 1905, was the first truly modern centerfire pocket pistol cartridge. It was rimless, used a small, semi-rimmed case for reliable extraction, and offered more power than the .22 Short or .32 S&W. The H&R .25 was one of many pistols built for this round.
A Collector's Gem: Condition is Everything
As our expert states: "I have several of these H&R .25's in the collection, but none close to this condition." In the collector's market, condition is king. A pistol retaining most of its original finish, with a non-corroded bore, all-matching parts, and a functional mechanism is rare. Add in a great-condition original box, even if fragile, and you have a significant find. "All items are used unless otherwise indicated" is a standard and important disclaimer in the collector's world, acknowledging the historical nature of these objects.
Part 6: Understanding Parts Kits and Legal Realities
A critical section for anyone exploring this niche: the world of parts kits. The key sentences provide a stark legal and practical boundary.
- "H&r self loading 25 acp pistol kit." This phrase describes a common offering in the surplus and parts market.
- "All items are used unless otherwise indicated." These kits consist of demilitarized, non-functional parts from surplus firearms.
- "Parts kits are not functioning firearms." This is the fundamental legal truth in the United States. A parts kit, by itself, is just a collection of metal parts.
- "All parts kits sold on this site include everything pictured. They do not include a receiver and we do not sell receivers." This is the crucial legal line. The receiver (or frame, in the case of the H&R .25) is the component the Bureau of Alcohol, Tobacco, Firearms and Explosives (ATF) legally defines as the "firearm." Without it, you do not have a firearm. Building a functional pistol from a parts kit requires a legally acquired, serialized receiver, which is subject to all federal and state transfer regulations (background check, tax stamp if applicable, etc.). Attempting to manufacture a receiver from scratch without a proper license is illegal. This disclaimer protects both the seller and informs the buyer.
Conclusion: The Joy and Responsibility of Preservation
The journey with an H&R Self-Loading .25 ACP—from diagnosing a stubborn feed issue through a detailed field strip, to appreciating its unique striker-fired mechanics and barrel lug system, and finally to the meticulous preservation of its historical context—is a microcosm of responsible historical collecting. "Yes, the gun is super old" is not just an observation; it's a call to approach it with knowledge, patience, and care.
The feeding problem, while annoying, is often a solvable mechanical puzzle rooted in the simple physics of aging springs and accumulated grime. The pistol's design, with its unusually large and heavy striker and clever trigger guard lug, is a testament to the ingenuity of its time. And the effort to stabilize its original box elevates the ownership from mere possession to active stewardship of history.
So, the next time you encounter one of these little H&R .25 ACP pistols—perhaps at a show like the SCACA show in January—look beyond the surface. See the engineering, feel the history in its worn checkering, and appreciate the full story it tells, from the factory floor to your collection. With the right knowledge, you can ensure this piece of American arms-making history continues to function and be appreciated for generations to come, in great condition for all to see.
