The Ultimate Guide To Hydraulic Crimping Tools: Efficiency, Precision, And Power

Tired of struggling with inconsistent crimps, fatigued hands, and connections that just won't hold? In the worlds of electrical work, industrial manufacturing, automotive repair, and even ambitious DIY projects, the quality of a crimp can make or break a system's safety, reliability, and longevity. This is where the hydraulic crimping tool emerges not just as a tool, but as a transformative solution. Far removed from its manual predecessors, a hydraulic crimper uses the science of fluid pressure to deliver unmatched force, consistency, and control. Whether you're terminating massive 600 MCM cables or precision-crimping delicate copper pipes in tight spaces, understanding this technology is key to choosing the right tool for the job. This comprehensive guide will unpack everything you need to know, from the inner workings of the hydraulic mechanism to selecting the perfect model from a vast inventory of over 110 styles, ensuring your next project is built on a foundation of secure, professional-grade connections.

Understanding the Hydraulic Crimping Tool: The Mechanism of Power

At its core, a hydraulic crimping tool is a force multiplier. The fundamental principle, as described in our key points, is that these tools employ a hydraulic mechanism to exert controlled pressure, enabling the compression and secure attachment of connectors to conductors. This process begins with a simple hand pump or a battery-powered pump (in cordless models). When you actuate the pump, it forces hydraulic fluid from a reservoir into a sealed cylinder. This fluid, being nearly incompressible, transmits that force with precision to a piston or ram inside the crimper head.

The magic lies in the controlled pressure. Unlike a manual ratchet crimper that relies on user strength and can vary from one squeeze to the next, the hydraulic system builds to a predetermined, consistent pressure. This ensures that every single crimp is identical in shape, density, and compression, regardless of the operator's physical strength. This consistency is the bedrock of secure crimps for electrical and industrial needs. It eliminates the guesswork and fatigue, producing a metallurgical bond between the conductor strands and the connector that is both electrically superior and mechanically robust, capable of withstanding vibration, thermal cycling, and significant pull-out forces.

Deconstructing the Tool: Key Components of a Hydraulic Crimper

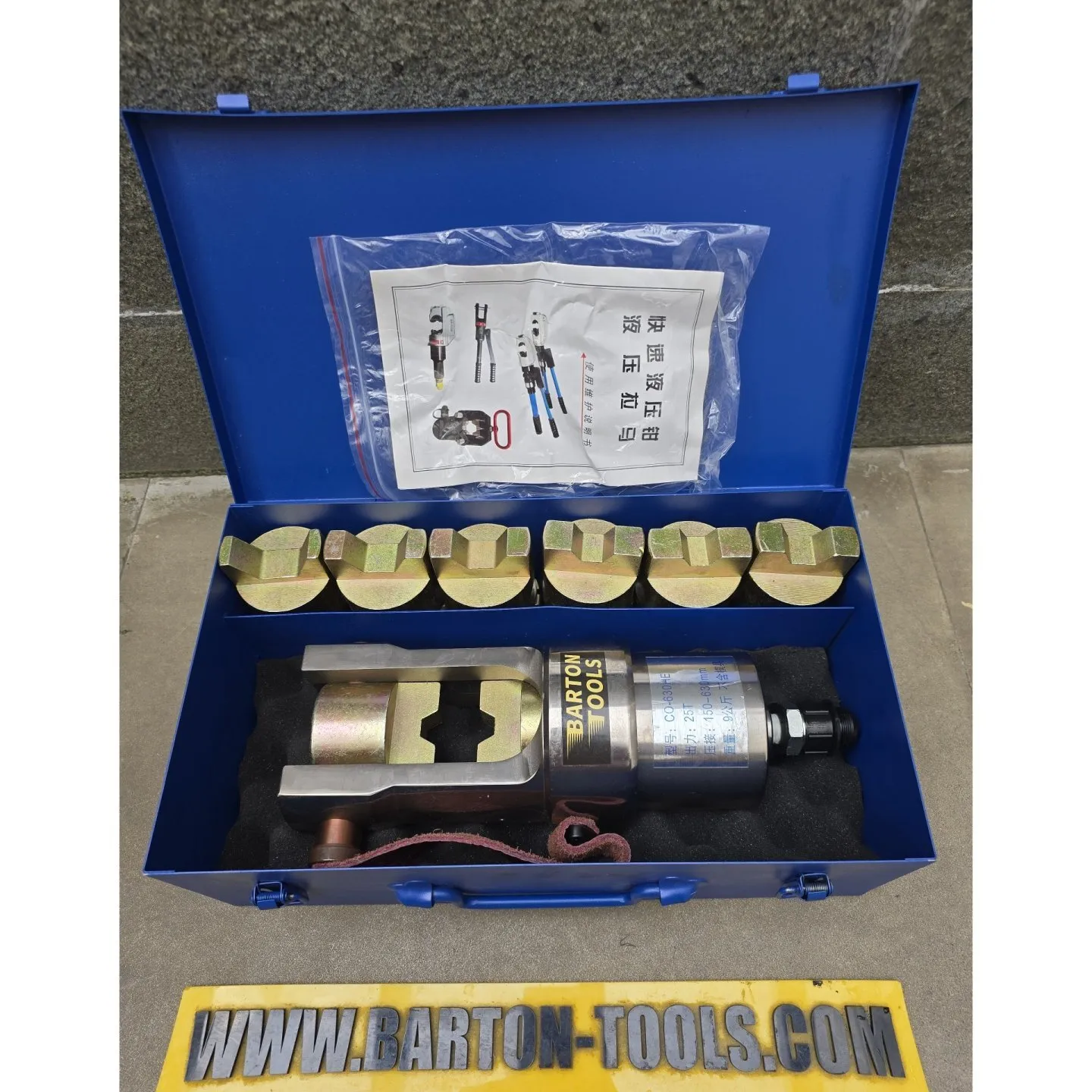

To fully appreciate how these tools work and how to select one, it's essential to understand their anatomy. Key components of hydraulic crimping tools typically include a hydraulic pump, a crimper head, and dies that match the specific connector sizes.

• Hydraulic Pump: This is the heart of the system. It can be a manual lever pump, a foot pump, or an electric/battery-powered pump (like in Milwaukee's M18 Force Logic series). The pump's design dictates the tool's portability, speed, and maximum pressure output. Battery-powered pumps offer incredible convenience and speed on job sites without air compressors.
• Crimper Head (or Die Frame): This is the business end. It houses the crimping dies and provides the framework that contains the immense pressure generated by the pump. The head's design must be robust enough to handle repeated stress without deformation. Some heads are fixed, while others are rotating or articulating to improve access in tight spaces.
• Crimping Dies: These are the interchangeable, precision-machined inserts that actually shape the connector. They are sized specifically for the connector type (e.g., insulated vs. non-insulated, butt splice, ring terminal) and the wire gauge. The crimper tool crimps 14 to 0 AWG copper and aluminum wires using steel crimping dies, but specialized dies exist for everything from 24 AWG miniature terminals to massive 1000 MCM cables. The die's exact contour is engineered to compress the connector and wire strands into the perfect "hex" or "open barrel" shape specified by standards like UL 486A.

Unmatched Versatility: Handling Diverse Cable and Wire Sizes

One of the most significant advantages of professional hydraulic crimpers is their incredible range. Durable hydraulic crimpers handle diverse cable and wire sizes, making a single tool or a modular system a potential one-stop shop for an electrician or technician. This versatility is achieved through a comprehensive die set.

A typical professional kit might include 13 pairs of standard dies to cover a broad spectrum. For instance, a common range is from 12 AWG to 00 (2/0), which handles most automotive, marine, and general electrical applications. For heavy industrial and utility work, you move into the 6 AWG to 600 MCM territory. The largest dieless crimpers (like an 11-ton model) use a universal jaw that adjusts to crimp a vast array of large lug sizes without needing a specific die for each one, offering unparalleled flexibility for large conductors. This means you can confidently work on anything from a small sensor wire in a car to a main service entrance cable on a commercial building with tools designed for the task.

The Smart Choice: Exploring M18 Force Logic Hydraulic Crimpers

When discussing modern, efficient hydraulic crimping, the M18 Force Logic hydraulic crimpers represent a pinnacle of cordless, job-site-focused design. Designed to deliver the smartest way to work, this system from Milwaukee Tool integrates their M18 REDLITHIUM battery platform with industry-leading crimping technology.

The key benefits of the M18 Force Logic line include:

• True Cordless Freedom: No hoses, no compressors, no cords. Work anywhere, anytime.
• Cycle Speed: They complete a crimp in seconds, dramatically increasing productivity compared to manual tools.
• Consistency & Certification: They produce crimps that meet or exceed UL 486A and CSA C22.2 No. 65 standards, providing peace of mind for critical applications.
• Ergonomics: Designed to be balanced and reduce user fatigue during repetitive tasks.
• Smart Features: Some models feature one-touch operation and LED lights for visibility in dark spaces.

For professionals who move between job sites, work in confined areas, or simply value maximum efficiency, the M18 Force Logic series is a benchmark for what a modern hydraulic wire crimper should be.

Finding Your Fit: A Spectrum of Sizes and Models

Choose from different sizes and models to suit your needs, from 600 MCM to 11-ton dieless crimpers. This selection is critical. The right tool is determined by the largest conductor size and connector type you'll work with most often.

• Light-Duty/General Purpose (Up to 4/0 AWG): Often battery-powered or manual, perfect for automotive, marine, and residential electrical. They are compact and affordable.
• Medium-Duty (250 kcmil to 500 MCM): The workhorses for commercial electricians and industrial maintenance. Usually require a separate hydraulic pump (manual or electric).
• Heavy-Duty/Utility (500 MCM to 1000 MCM and above): These are substantial tools, often with powerful electric pumps, used for transformer terminations, large power cables, and substation work.
• Dieless Crimpers (e.g., 11-Ton): As mentioned, these use a single, adjustable jaw to crimp a wide range of large lugs and connectors. They are incredibly versatile for linemen and industrial electricians dealing with many different large lug sizes, as you don't need to carry a massive die set.
• Specialty Crimpers: This includes copper pipe crimping tools (more on this below) and tools designed for specific terminals or applications like coaxial cable.

Beyond Wires: Industrial and DIY Powerhouse Applications

While electrical termination is the primary function, the application scope is vast. Perfect for automotive, industrial, and DIY projects, it's your ultimate solution for efficient and reliable cable work.

• Automotive & Marine: Crimping battery terminals, starter motor lugs, sensor connectors, and trailer wiring. The controlled pressure ensures connections won't loosen under vibration.
• Industrial Machinery & Panel Building: Terminating control cables, power leads to VFDs and motors, and grounding conductors. Consistency is non-negotiable for safety and uptime.
• Renewable Energy: Securely connecting solar panel strings, battery banks in inverters, and wind turbine wiring where reliability is paramount.
• DIY & Home Improvement: Serious DIYers tackling projects like building a workshop, installing a subpanel, wiring a outbuilding, or even custom automotive restoration will find a hydraulic crimper to be a game-changer, producing pro-level results without pro-level effort.
• Aerospace & Rail: High-spec, certified versions are used where failure is not an option.

A Specialized Skill: Hydraulic Copper Pipe Crimping

A significant and growing niche is the hydraulic copper pipe crimping tool. Designed for efficient pipe installation and repair, this hydraulic copper pipe crimping tool delivers stable pressure and reliable connections in tight working areas. This is the technology behind "Pro Press" style fittings.

How it works: Instead of compressing a wire terminal, this tool uses a special crimping die that matches the profile of a copper (or stainless steel) press-fit fitting. The hydraulic mechanism squeezes the fitting onto the pipe with hundreds of pounds of force, permanently deforming the fitting to create a leak-proof, mechanical seal without the need for solder or open flame. The benefits are immense:

• No Soldering: Eliminates burn risks, fire hazards, and the need for skilled soldering.
• Speed & Cleanliness: Connections are made in seconds, with no mess or cleanup.
• Access: Works brilliantly in tight, awkward spaces where a torch cannot reach.
• Consistency: Every crimp is identical, ensuring system integrity. A hydraulic driven pro press tool with dies for 1/2", 3/4", and other common pipe sizes is now a staple for modern plumbers, HVAC technicians, and fire sprinkler installers.

Navigating the Market: Selection, Availability, and Value

Choose from our selection of hydraulic crimping tools, including over 110 products in a wide range of styles and sizes. This vast marketplace means you must be a savvy buyer. Key considerations include:

1. Max Wire Size & Die Range: This is your first filter. What's the largest wire/connector you'll crimp? Ensure the tool and its available dies cover that range.
2. Power Source: Manual (hand pump) is slow but cheap and portable. Electric (AC/DC) is faster for high-volume work. Battery-powered (like M18) offers the best balance of portability and speed for most field pros.
3. Crimp Standards: Look for tools that are UL Listed or certified to meet SAE, ISO, or IEC standards for crimp quality. This is crucial for automotive and aerospace applications.
4. Build Quality & Brand Support: Reputable brands (Milwaukee, Greenlee, Burndy, Klein, Klauke) invest in superior materials, precision machining, and offer extensive die libraries and customer support.

Same and next day delivery from many industrial suppliers and retailers means you can often get the tool you need almost immediately, minimizing downtime.

For those seeking convenience, major retailers also carry these tools. You can Buy hydraulic crimping tool and [accessories] at Walmart.com, including models like a 12 AWG to 00 (2/0), 10 tons crimper tool with 9 crimping dies or a 16 ton hydraulic wire crimper lug terminal crimping tool with standard dies, crimps 6 AWG to 600 [kcmil]. These listings highlight the importance of understanding the specs: a "16-ton" rating indicates the crushing force, suitable for larger conductors, while the "6 AWG to 600" range defines its operational scope.

The Undeniable Advantages: Why Go Hydraulic?

When stacked against manual ratchet crimpers or basic pliers, the benefits of a dedicated hydraulic tool are clear:

• Unmatched Consistency & Quality: Eliminates human error. Every crimp is a perfect, repeatable compression.
• Massive Force with Minimal Effort: Crimp large, tough connectors (like 4/0 lugs) with one hand, without strain or injury risk.
• Dramatically Increased Productivity: Cycle times are measured in seconds, not minutes. This saves thousands in labor over a year.
• Reduced Fatigue & Injury: Ergonomic operation prevents the repetitive stress injuries common with manual crimping.
• Superior Connection Integrity: The even, high-pressure compression creates a bond that is electrically superior (lower resistance) and mechanically stronger, critical for high-vibration and high-current applications.
• Versatility Through Dies: A single tool platform can handle dozens of connector types and sizes with a simple die change.

Making the Smart Investment: Your Path to Perfect Crimps

Choosing a hydraulic crimping tool is an investment in quality, safety, and efficiency. Start by honestly assessing your most common applications. An automotive tech might prioritize a compact, battery-powered 4/0 AWG tool. A utility lineman needs a rugged, dieless 500+ MCM crimper. A plumber will look for a dedicated copper pipe crimping system.

Actionable Tips:

1. Buy for the Future: If you anticipate growth, choose a system with a higher capacity than your current max need.
2. Invest in Dies: Your dies are critical. Buy from the tool manufacturer or reputable die makers. Cheap, out-of-spec dies will ruin your connectors and your tool's reputation.
3. Maintenance is Key: Keep hydraulic fluid clean and at the correct level. Store dies properly to prevent rust and damage. Regularly inspect hoses and connections on pump units.
4. Practice: Before a critical job, practice on scrap wire to get a feel for the tool and verify the die is seating fully.

Conclusion: Work Smarter, Not Harder

The journey from a simple hand tool to the sophisticated hydraulic crimping tool represents a leap in craftsmanship and efficiency. It’s the difference between hoping a connection holds and knowing it will, for decades. From the consistent, secure crimps required for mission-critical industrial systems to the efficient and reliable cable work of a home workshop, this technology delivers. With options spanning from the smart, cordless M18 Force Logic series to massive 16-ton industrial crimpers and specialized copper pipe crimping systems, there is a perfect, powerful solution for every need. By understanding the mechanism, respecting the importance of the correct crimping dies, and selecting a tool from the vast selection available with same and next day delivery, you equip yourself to produce flawless connections every time. In a world that demands reliability, a hydraulic crimper isn't just a purchase—it's the foundation of quality work.
